The Architectural Interface: Why Reveal Detailing is a Critical Failure Point
In high-end residential design, the building envelope’s performance is often judged by its weakest link: the apertures. For architects, the challenge lies in the transition between the solid mass of the wall and the transparent void of the fenestration. This junction is where the most common and costly structural failures occur.
Waterproofing window installation is a complex technical interface that requires precise detailing to prevent water ingress, manage thermal expansion, and ensure the building’s structural integrity. In premium builds, where expansive glass spans and minimalistic profiles are the standard, the margin for error is virtually non-existent.
Redefining the Sequence: The Case for Finished Reveals
Conventional construction sequences often see window frames installed into raw masonry openings, with plastering and finishing occurring around the frames at a later stage. At Fenster Aluminium, our methodology flips this sequence to prioritise the integrity of the building seal. We mandate that windows and doors be installed on fully plastered reveals.
1. Superior Seal Substrate
A common challenge in waterproofing window installation is achieving a consistent chemical bond. Raw masonry is porous, uneven, and prone to dusting. By installing onto a finished, cured plaster reveal, the sealant is applied to a stable, non-porous substrate. This significantly reduces the risk of adhesive failure over time.
2. Precision and Tolerances
High-performance aluminium systems are engineered to millimetre-perfect tolerances. Installing into a finished opening ensures that the daylight size of the aperture is fixed. This allows for a more uniform sealant joint around the perimeter, which is essential for the sealant to function as a flexible gasket during the building’s natural settlement and thermal cycles.
The Science of the Seal: A Dual-Layered Specification
To ensure a weather-tight building envelope, a single bead of silicone is insufficient. Our technical specification utilises a dual-seal methodology, recognising that the internal and external environments exert different pressures on the window system.
External Primary Seal: Polyurethane (PU) Technology
For the exterior interface, we specify high-performance polyurethane silicone. Unlike standard acetoxy silicones, PU sealants offer superior resistance to UV degradation and environmental pollutants. More importantly, they possess a higher movement accommodation factor. As the aluminium frames expand and contract due to solar gain, the PU seal maintains its elasticity, preventing the microscopic tears that lead to water bypass.
Internal Secondary Seal: Acrylic Hybrid Systems
The interior seal serves a different purpose. While it provides a secondary barrier against air infiltration, its primary architectural role is aesthetic integration. We utilise acrylic silicone hybrids that are specifically formulated to be paintable. This allows for a seamless transition between the window frame and the interior wall finish, maintaining the clean lines expected in luxury residential interiors.
Defining the Scope: The Structural Waterproofing Window Installation Prerequisite
A common misconception in the construction process is the belief that the window sealant is the sole barrier against moisture. In reality, waterproofing window installation is a tiered system.
The most critical component – the structural waterproofing membrane – must be applied by the contractor before the fenestration team arrives on site. This membrane should cover the entire reveal and return onto the face of the building skin.
Why this is critical: If water penetrates the external cladding or the masonry further up the facade, it can travel through the wall cavity. Without a robust structural membrane on the reveal, this moisture can bypass the window’s surface seals and emerge inside the building. Fenster Aluminium’s installation is designed to work in tandem with this structural layer, not to replace it.

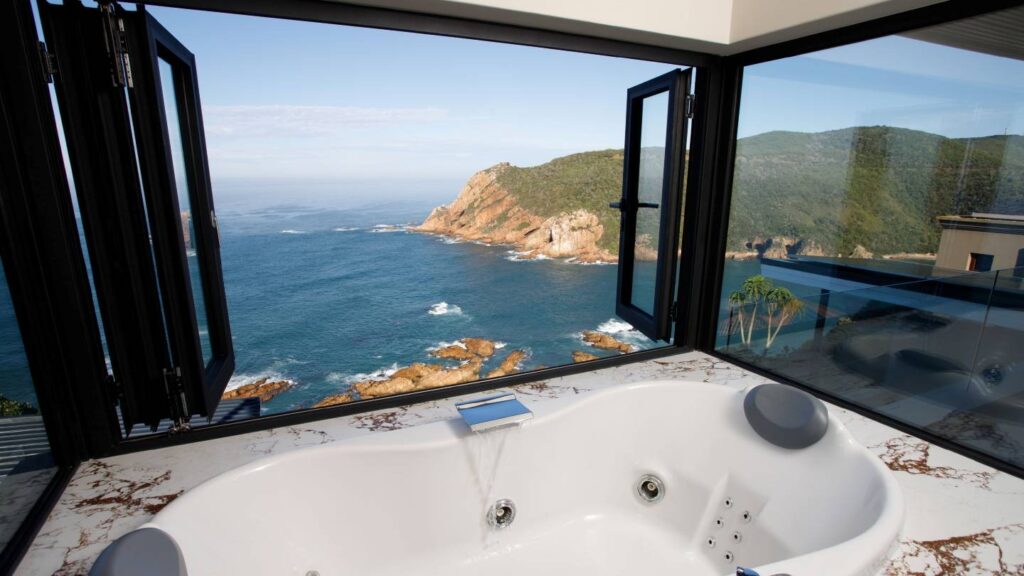

Environmental Variables: Coastal and High-Exposure Detailing
For architects designing in coastal regions or high-altitude areas with high wind loads, the standard waterproofing window installation protocols must be enhanced. The combination of salt-laden air and driving rain creates a pressure cooker effect on window seals.
In these environments, we recommend the integration of:
- Sub-Sill Flashing (Waterproofing Angles): Mechanical barriers that ensure any moisture that does reach the sill is directed outward rather than into the wall cavity.
- Enhanced Curing Times: Ensuring that the substrate waterproofing has fully outgassed and cured before applying perimeter sealants to avoid chemical incompatibility.
- Pressure-Equalised Detailing: Designing the reveal to manage the pressure changes between the interior and exterior, reducing the force that pulls water through tiny gaps.
Site Readiness: The Architect’s Checklist
To ensure a successful installation, we encourage the inclusion of the following milestones in site inspection protocols:
- Aperture Accuracy: Are the reveals plumb, square, and finished to the final plaster line?
- Membrane Integrity: Is the structural waterproofing membrane continuous and free of punctures?
- Datum Verification: Are floor levels and datum lines confirmed to ensure that threshold drainage (especially for flush-track sliding doors) can be integrated correctly?
A Collaborative Responsibility
The pursuit of a perfectly waterproofed building envelope is a collaborative endeavour. It requires the architect’s technical vision, the builder’s meticulous substrate preparation, and the fenestration specialist’s precision in installation.
By prioritising a methodology that focuses on finished reveals and dual-seal technology, you are ensuring proper waterproofing that protects a structural investment. The result is a high-performance home that maintains its aesthetic and structural integrity for decades, regardless of the environmental challenges it faces.
Through clear specifications and a commitment to these technical standards, the risks associated with window installations are transformed into a hallmark of quality and professional excellence. Contact us today, and let our professional team help you get the waterproofing window installation that your home deserves.
